The MTC-SM2263EN-series solid-state-drive (SSD) is a performance-optimized, M.2 form-factor, PCI-Express/NVMe interface mass storage device. The MCT-62EN-series SSD is compliant with PCI-Express Gen. 3 and NVMe 1.3 protocol. Interfacing host platform with high speed PCIe 8 Gb/s lanes, MTC-62EN-delivers high access speed for both READ and WRITE access. The MTC-62EN-series utilize advanced, proprietary performance-optimized LDPC ECC technology plus NAND Flash RAID engine to ensure high reliability and protect user data. In addition, the MTC-62EN-series also features intelligent power management to maintain low overall power consumption while delivering high data throughput and rigorous data protection.
M.2 2280, PCIe Gen 3×4 M.2, PCIe M.2 SSD
MPC-SA Gen3x4 SSD M.2 2280 256GB
NVMe 1.3 ,PCI Express Base 3.1 , NVMe PCIe Gen 3 x 4

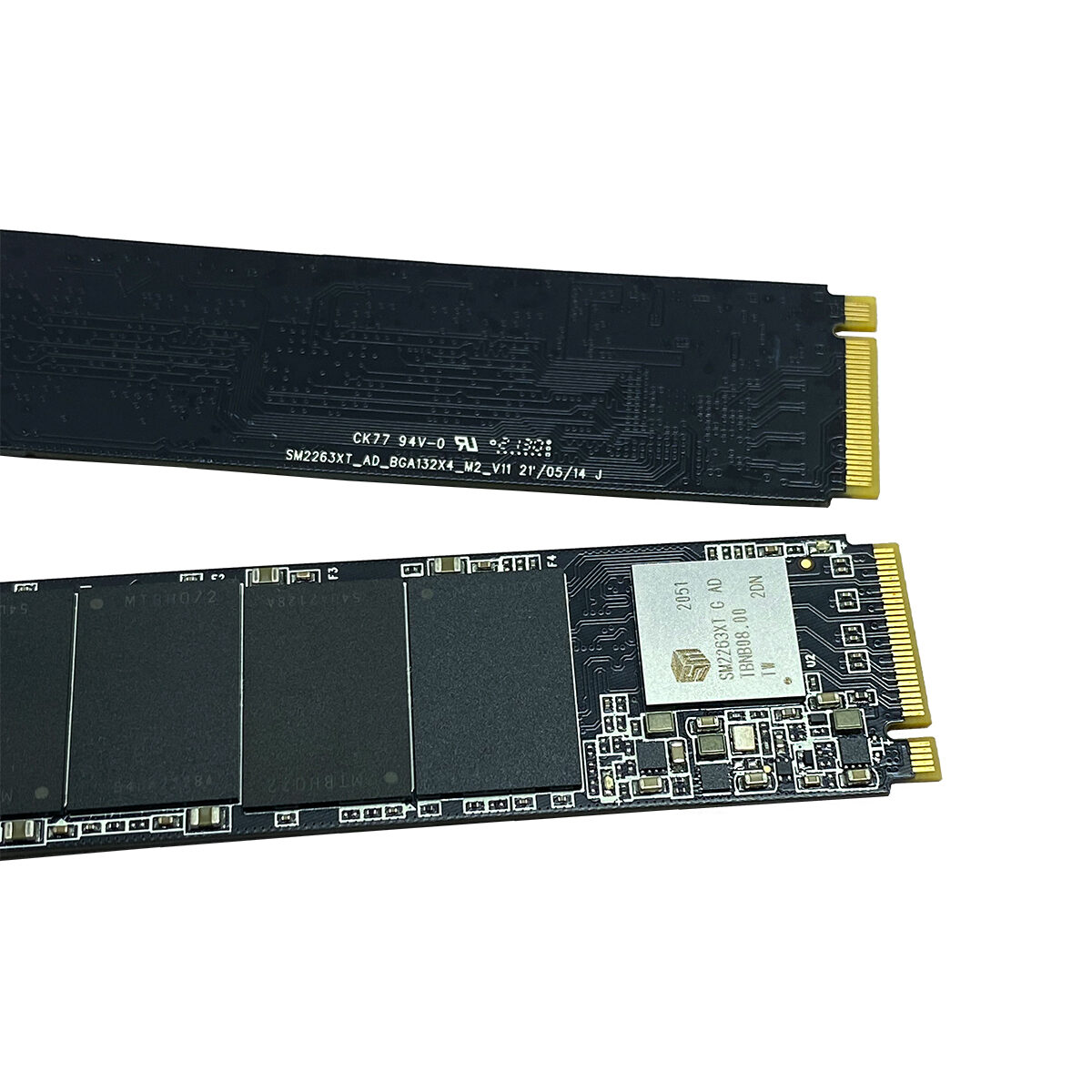

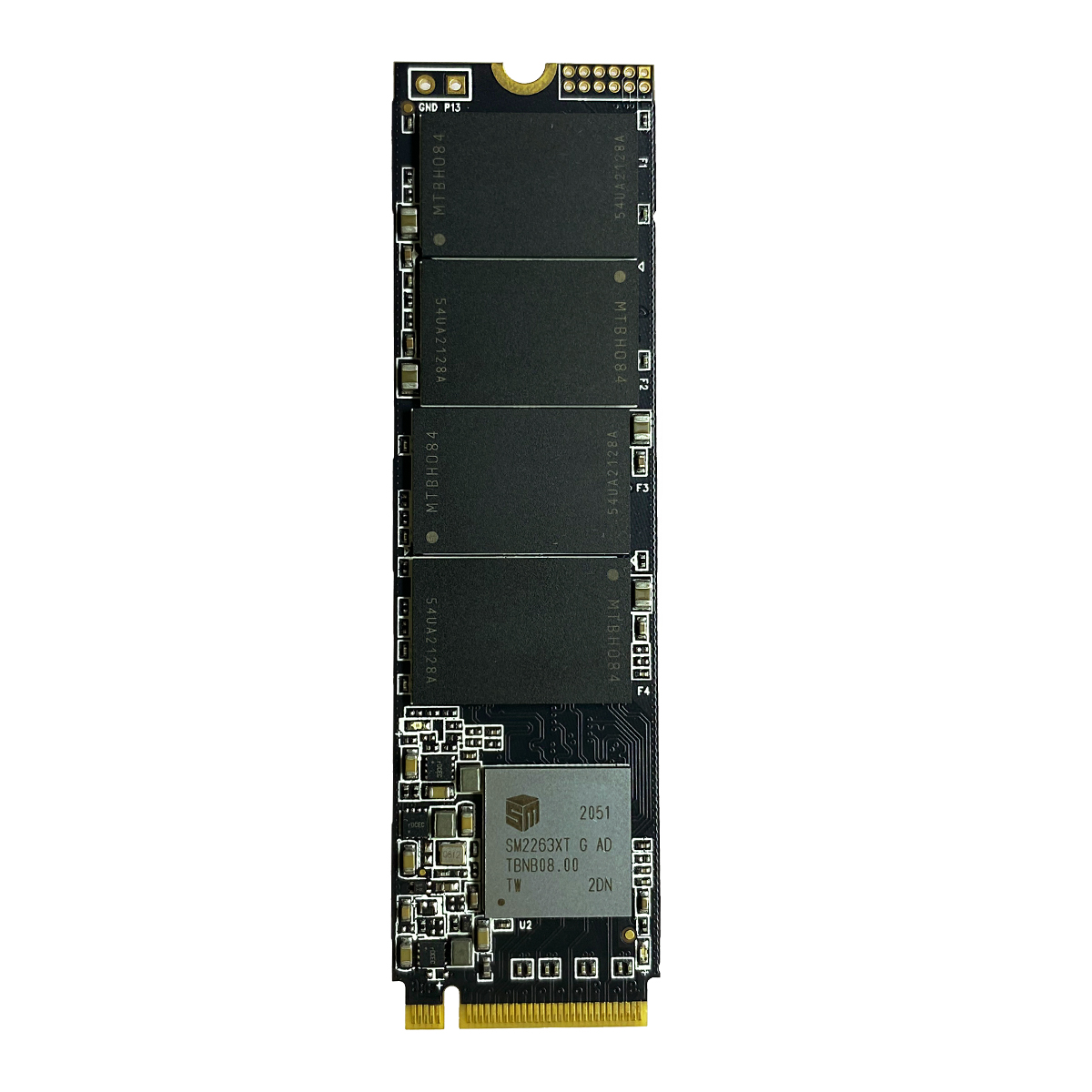

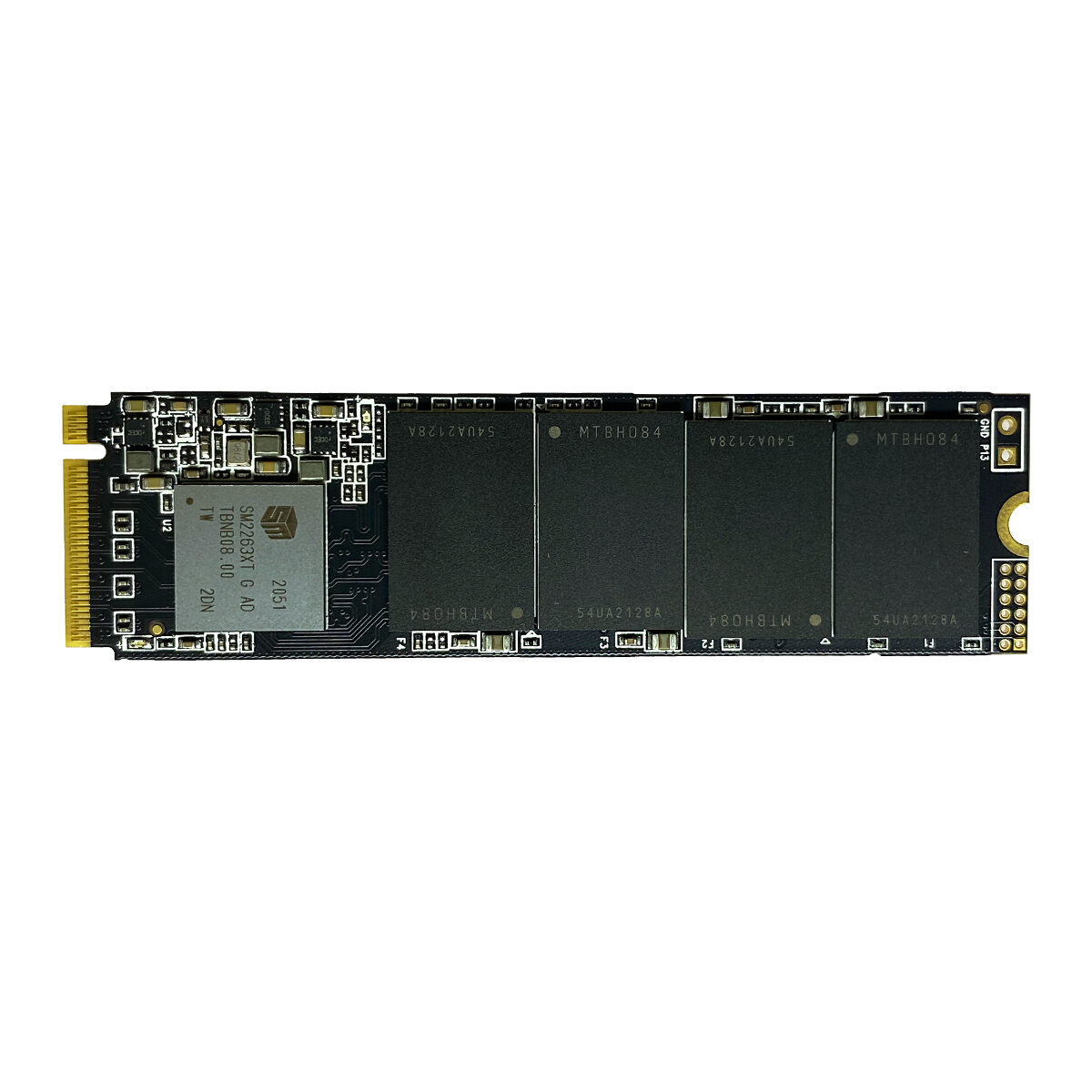

IC SM2263XT
Sequential Read: 256 GB / 512 GB / 1TB /: Up to 2100 MB/s
Sequential Write: 256 GB: Up to 1250 MB/s , 512 GB: Up to 1650 MB/
| Capacity | 1TB, 256GB, 2TB, 512GB |
|---|
